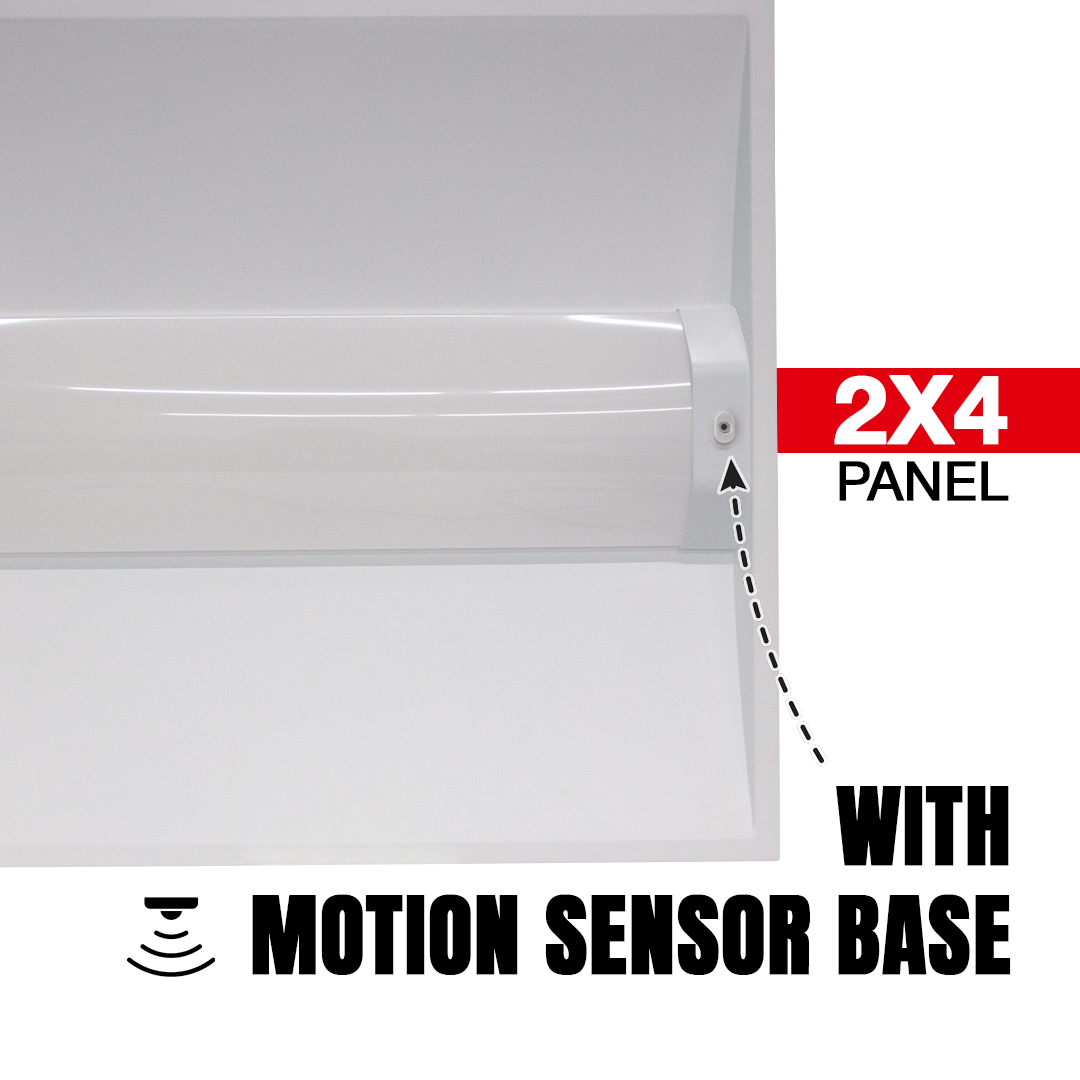

2×4 LED Center Basket Troffer with Motion Sensor Base
Wattage: 50W/40W/30W
Max Lumens: 6,500lm
CCT: 5000K/4000K/3500K
Features & Benefits
- Dimming feature for easy customization
- ETL Certified, DLC 6.0 Premium, UL listed
- Fully selectable CCT and wattage for customized lighting output
- Equipped with Integral NEC-compliant earthquake clips
- Suitable for wet and dry locations
Performance Data
| 3500K (>80CRI) | 4000K (>80CRI) | 5000K (>80CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-TR-2X4-MW-MCCT-TROFFER-MS | 30W | 0.458A | 3,930lm | 131 lm/W | 4,080lm | 136 lm/W | 3,990lm | 130 lm/W |
| 40W | 5,120lm | 128 lm/W | 5,320lm | 133 lm/W | 5,200lm | 130 lm/W | ||
| 50W | 6,250lm | 125 lm/W | 6,500lm | 130 lm/W | 6,350lm | 127 lm/W | ||
Product Summary
Available in Selectable CCT & Wattages- 30W/40W/50W
The 2×4 LED Center Basket Troffer with Motion Sensor Base is a versatile lighting solution designed to deliver optimized performance across modern commercial spaces. Featuring fully selectable CCT and wattage, this 2X4 troffer allows easy customization to suit varying lighting requirements. This motion sensor–based variant enhances energy efficiency by automatically adjusting illumination based on occupancy, reducing unnecessary power consumption.
Applications:
Commercial Spaces, Airport lounges, Corporate offices, Banks & ATM outlets, Modern work spaces, and Hospital premises.
Product Specification
Efficacy
130 lm/W
CCT Options
3500K/4000K/5000K
CRI
≥80
Beam Angle
120°
Input Voltage
120-277 Vac
Power Factor (PF)
≥0.9
THD
<20%
Dimming
0-10V standard
Operating Temp.
-20℃ to +45℃
Warranty
5 Years
Finish
White
Mounting
Recessed Ceiling
Housing Material
Metal+ Aluminum Powder Coated
Lens Type
PC Lens, 120 degree HB Grade
FAQ
Frequently Asked Questions (FAQ's)
What is a 2X4 Troffer Center Basket Light with Motion Sensor?
The 2X4 Troffer Center Basket Light with Motion Sensor is a recessed LED ceiling fixture designed for 2×4 suspended grid ceilings. It provides uniform, low-glare illumination and includes an integrated motion sensor that automatically controls lighting based on occupancy in commercial spaces.
What certifications does this troffer typically meet?
Commercial LED troffers with integrated sensors are commonly ETL and UL listed, confirming compliance with recognized electrical safety standards. These listings ensure safe operation and suitability for professional installations in commercial indoor environments.
Does this troffer reduce maintenance costs?
Yes, long-life LEDs combined with reduced usage from occupancy control mean fewer service calls and replacements. This lowers labor costs, minimizes disruptions, and makes facility maintenance more predictable and cost-effective.
