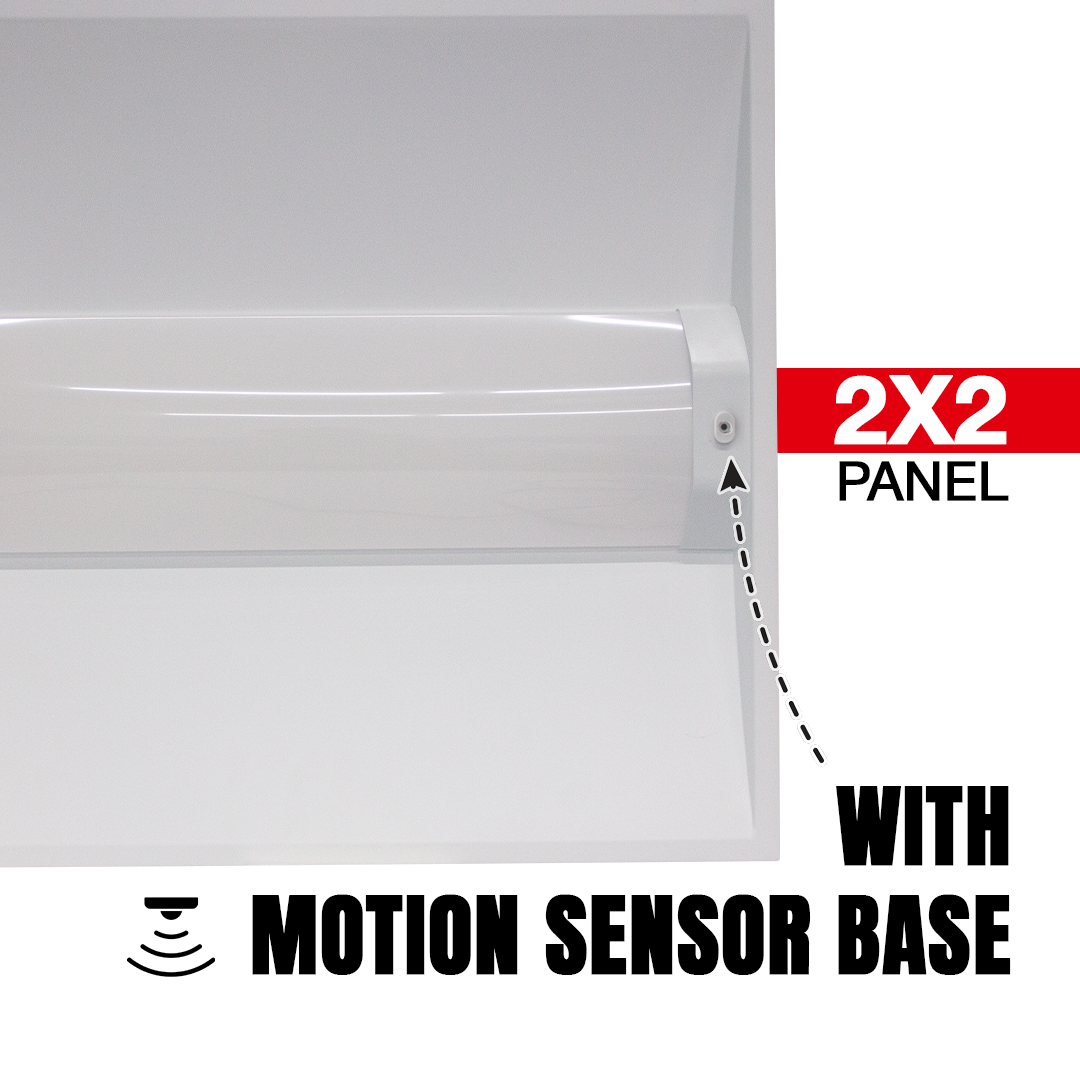

2×2 LED Center Basket Troffer with Motion Sensor Base
- Dimming feature for easy customization
- Fully selectable CCT and wattage for customized lighting output
- Delivers up to 5,200lm in the 2×2 variant for high brightness
- Equipped with Integral NEC-compliant earthquake clips
- Suitable for wet and dry locations
Performance Data
| 3500K (>80CRI) | 4000K (>80CRI) | 5000K (>80CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-TR-2X2-MW-MCCT-TROFFER-MS | 20W | 0.367A | 2,620lm | 131 lm/W | 2,720lm | 136 lm/W | 2,660lm | 133 lm/W |
| 30W | 3,840lm | 128 lm/W | 3,990lm | 133 lm/W | 3,900lm | 130 lm/W | ||
| 40W | 5,000lm | 125 lm/W | 5,200lm | 130 lm/W | 5,080lm | 127 lm/W | ||
Available in Selectable CCT & Wattages- 20W/30W/40W.
The 2×2 LED Center Basket Troffer with Motion Sensor Base is a versatile lighting solution designed to deliver optimized performance across modern commercial spaces. Featuring fully selectable CCT and wattage, this 2X2 troffer allows easy customization to suit varying lighting requirements. This motion sensor–based variant enhances energy efficiency by automatically adjusting illumination based on occupancy, reducing unnecessary power consumption.
Applications:
Commercial Spaces, Airport lounges, Corporate offices, Banks & ATM outlets, Modern work spaces, and Hospital premises.
Frequently Asked Questions (FAQ's)
What is a 2X2 Troffer Center Basket Light with Motion Sensor?
How does the motion sensor improve energy efficiency?
How is the fixture installed?
The troffer is designed for standard 2×2 suspended T-grid ceilings, allowing quick lay-in installation. Accessible wiring compartments and integrated mounting features make it contractor-friendly and suitable for both new construction and retrofit projects.
