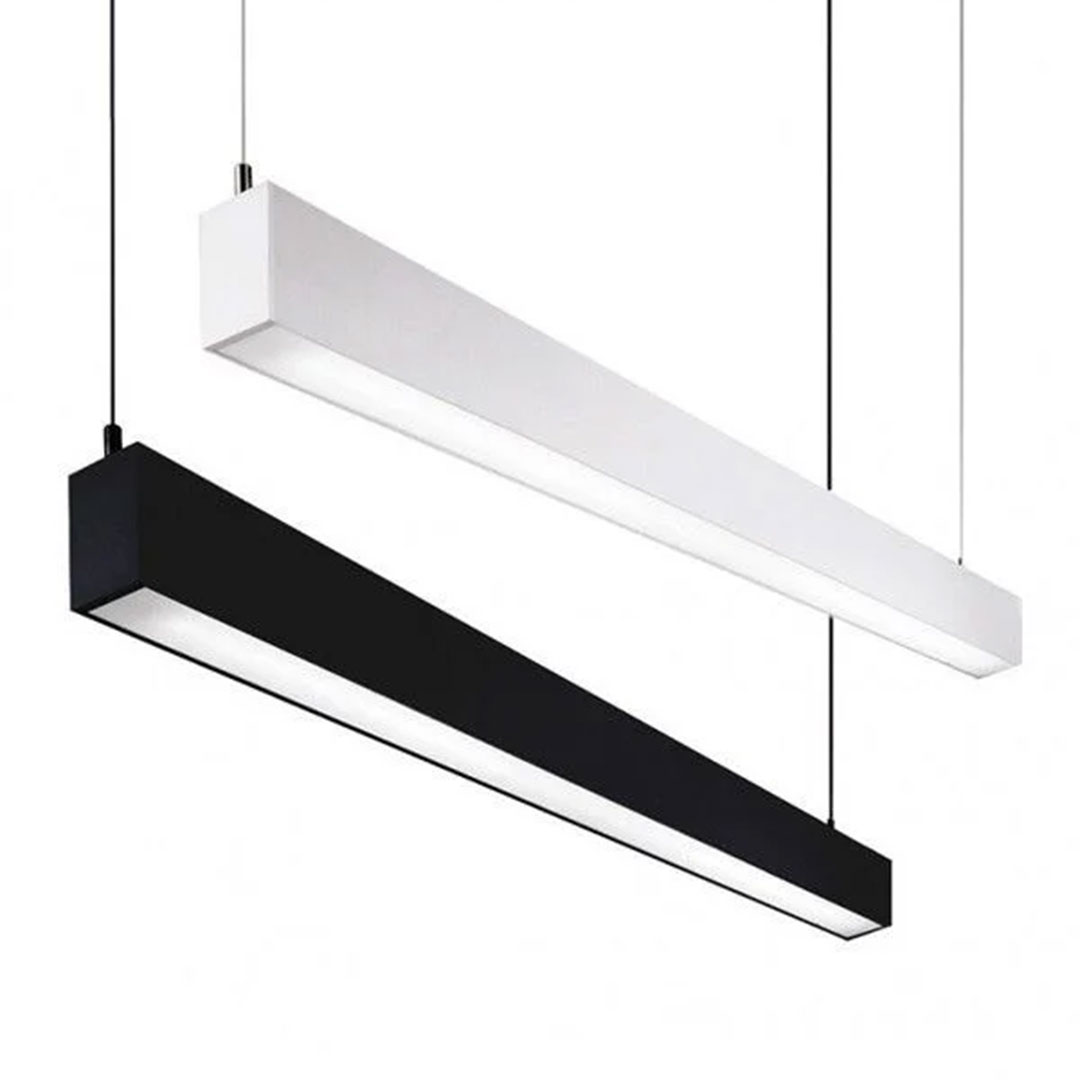

LED Linear Suspended Up & Down Light
Wattage: 55W/70W/85W
Max Lumens: 9,775lm
CCT: 3000K/4000K/5000K
Features & Benefits
- Selectable wattage and CCT for flexible lighting control
- Includes suspension kit for simple hanging installation
- Supports ceiling, wall, and suspended mounting options
- Four splicing methods for continuous linear lighting designs
- Available in black and white finishes
Performance Data
| 3000K (80 CRI) | 4000K (80 CRI) | 5000K (80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-SSQ-MW-MCCT-85W-4 Feet-XX | 55W | 0.50A | 5,775lm | 105 lm/W | 6,600lm | 120 lm/W | 6,050lm | 110 lm/W |
| 70W | 0.60A | 7,210lm | 103 lm/W | 8,260lm | 118 lm/W | 7,560lm | 108 lm/W | |
| 85W | 0.72A | 8,500lm | 100 lm/W | 9,775lm | 115 lm/W | 8,925lm | 105 lm/W | |
Product Summary
For educational, retail, and hospitality spaces. Available in 55W/70W/85W wattages
The LED Linear Suspended Up and Down Light combines architectural style with versatile lighting performance. It provides both upward and downward illumination to create balanced ambient lighting in offices, corridors, and commercial interiors. The fixture offers multiple installation options and splicing methods, making it easy to create continuous linear lighting layouts. Selectable wattage and color temperature allow users to adjust brightness and tone for different environments.
Applications:
Educational, Commercial, Hospitality, and Retail spaces.
Product Specification
Efficacy
115 lm/W
Beam Angle
110°
THD
<20%
Operating Temp.
-20°C to +40°C
Mounting
Suspended
CCT (Selectable)
3000K / 4000K / 5000K
Input Voltage
120–277 Vac
Surge Protection
1kV
Warranty
5 Years
Housing Material
Aluminum
CRI
80
Power Factor (PF)
>0.9
Dimming
0-10V standard
Finish
Black or White
Lens Type
Up:PC | Down:PS
