Linear High bay LED Light 150W
Wattage: 150W/135W/120W
Max Lumens: 20,250lm
CCT: 5000K/4000K/3000K
Features & Benefits
- Delivers up to 20,250lm in the 150W variant for high brightness
- Selectable wattage & CCT
- Dimming feature for easy customization
- ETL Certified, DLC Premium, UL listed
- Operating temp: -20°C to +45°C
Performance Data
| 3000K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-LHB-MW-MCCT-150W | 120W/135W/150W | 1.053A/1.184A/1.316A | 16,200lm | 135 lm/W | 18,225lm | 135 lm/W | 20,250lm | 135 lm/W |
Product Summary

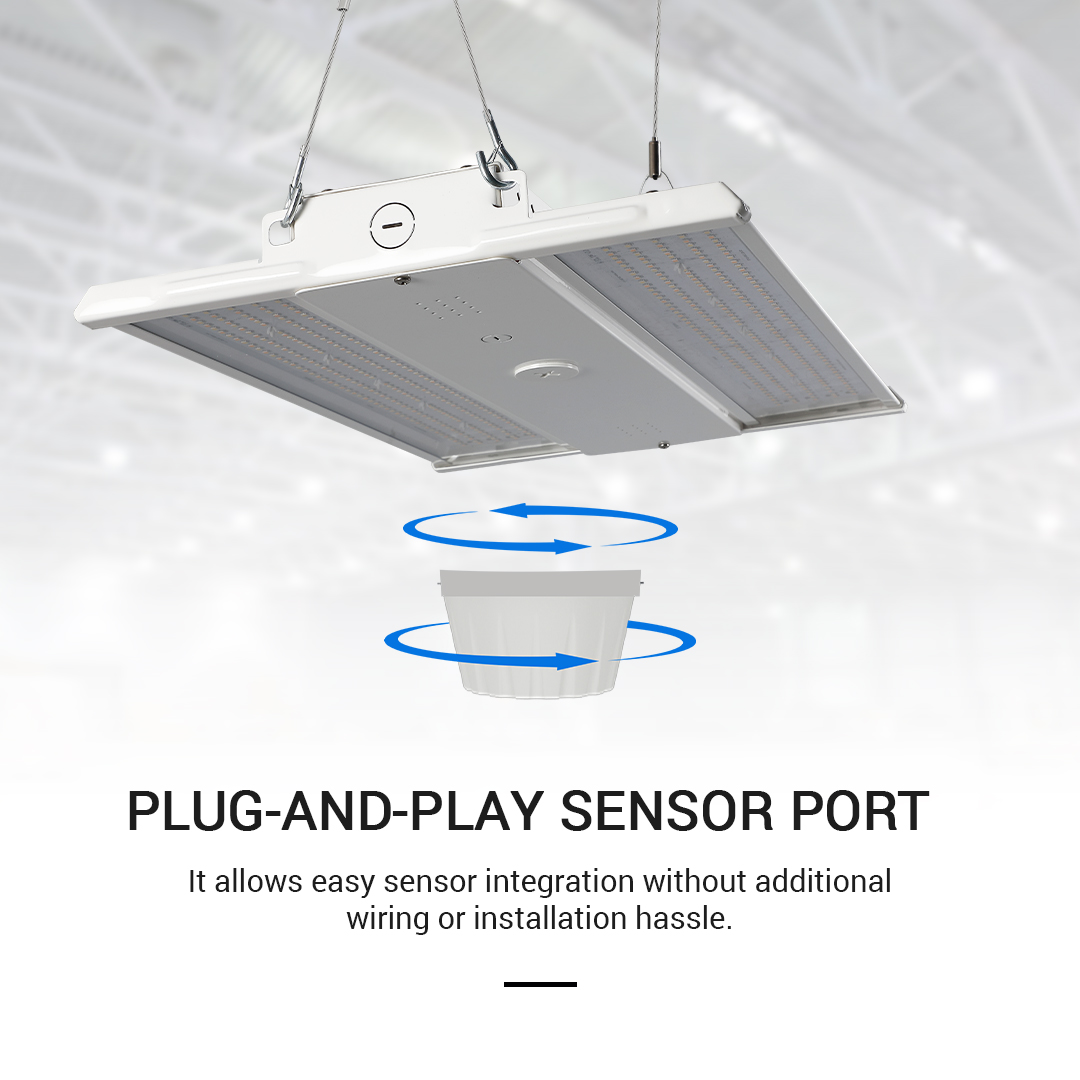

Available in Selectable Wattages & CCT- 120W/135W/150W with Plug-and-Play Sensor.
The Havells Linear HighBay is a modern, energy-efficient lighting solution for large indoor spaces. Its durable, shatter-resistant build ensures consistent, uniform lighting without hot spots or discoloration. Ideal for warehouses, garages, retail spaces, and sports facilities. A plug-and-play sensor port allows easy sensor integration without extra wiring or installation work.
Application :
Warehouses, Distribution Centers, Manufacturing Facilities.
Product Specification
Efficacy
135 lm/W
CCT (Selectable)
3000K / 4000K / 5000K
CRI
≥80
Beam Angle
120°
Input Voltage
120-277 Vac | 277-480 Vac
Power Factor (PF)
0.95
THD
≤10%
Dimming
0-10V Standard
Operating Temp.
-20℃ to +45℃
Warranty
5 Years
Finish
White
Mounting
Suspended and Ceiling
Housing Material
Metal Powder Coated
Lens Type
Clear Diffuser
FAQ
Frequently Asked Questions (FAQ's)
What light output and performance can I expect from the 150W high bay LED?
A 150W LED high bay typically delivers high lumen output suitable for industrial spaces, replacing traditional 400W metal halide fixtures with equal or better brightness, improving visibility while reducing energy consumption.
How high can a 150W LED high bay be installed?
A 150W linear high bay LED is typically installed at ceiling heights between 18 and 30 feet.
Can motion sensors be added?
Yes, Havells linear high bay LEDs support 0–10V dimming and occupancy sensors.
Can a 150W LED high bay replace 400W HID?
Yes, a 150W LED high bay can replace a 400W metal halide fixture.
How does a 150W LED high bay Light improve facility efficiency?
It reduces energy consumption, minimizes maintenance downtime, enhances lighting quality, and supports automated controls for smarter facility management.
