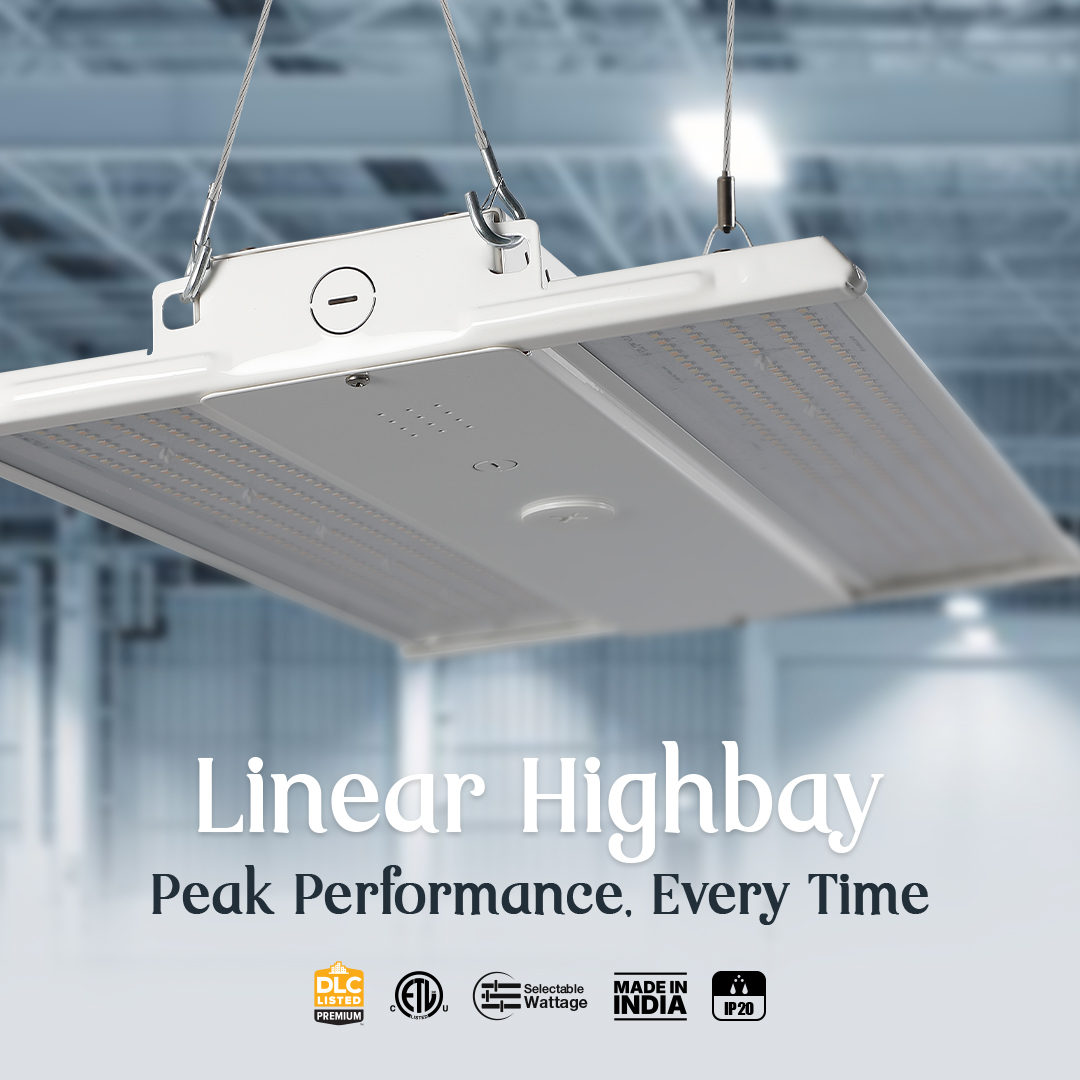

Linear High bay Light 400W HV
- Delivers up to 54,000lm in the 115W variant for high brightness
- Selectable wattage & CCT
- Dimming feature for easy customization
- ETL Certified, DLC Premium, UL listed
- Operating temp: -20°C to +45°C
Performance Data

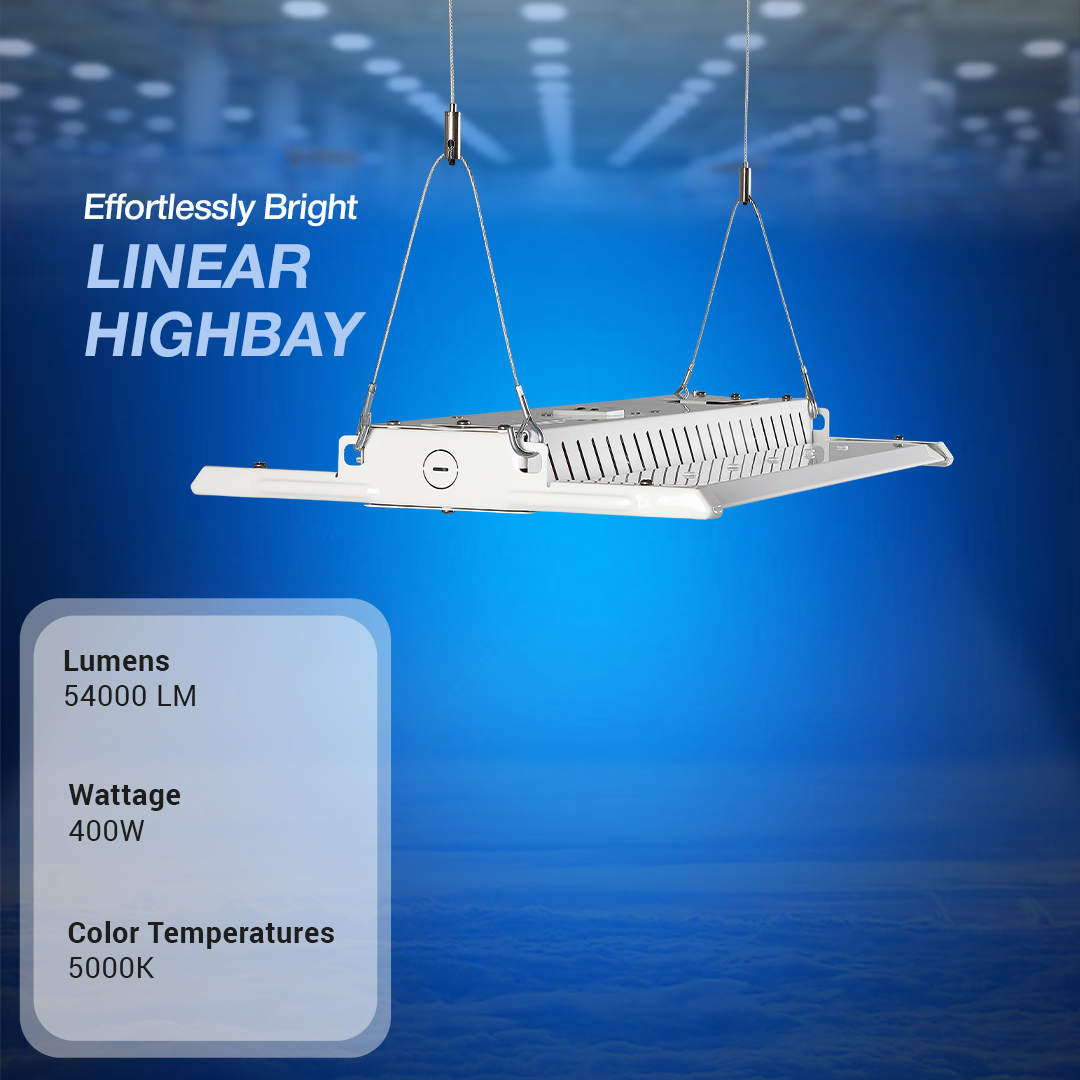

| Model Number | Wattages | System Lumens | CCT | Input Current | Efficacy | Input Voltage |
| HL-LHB-400W5K-HV | 400W | 54,000lm | 5000K | 1.520A | 135 lm/W | 277-480Vac |

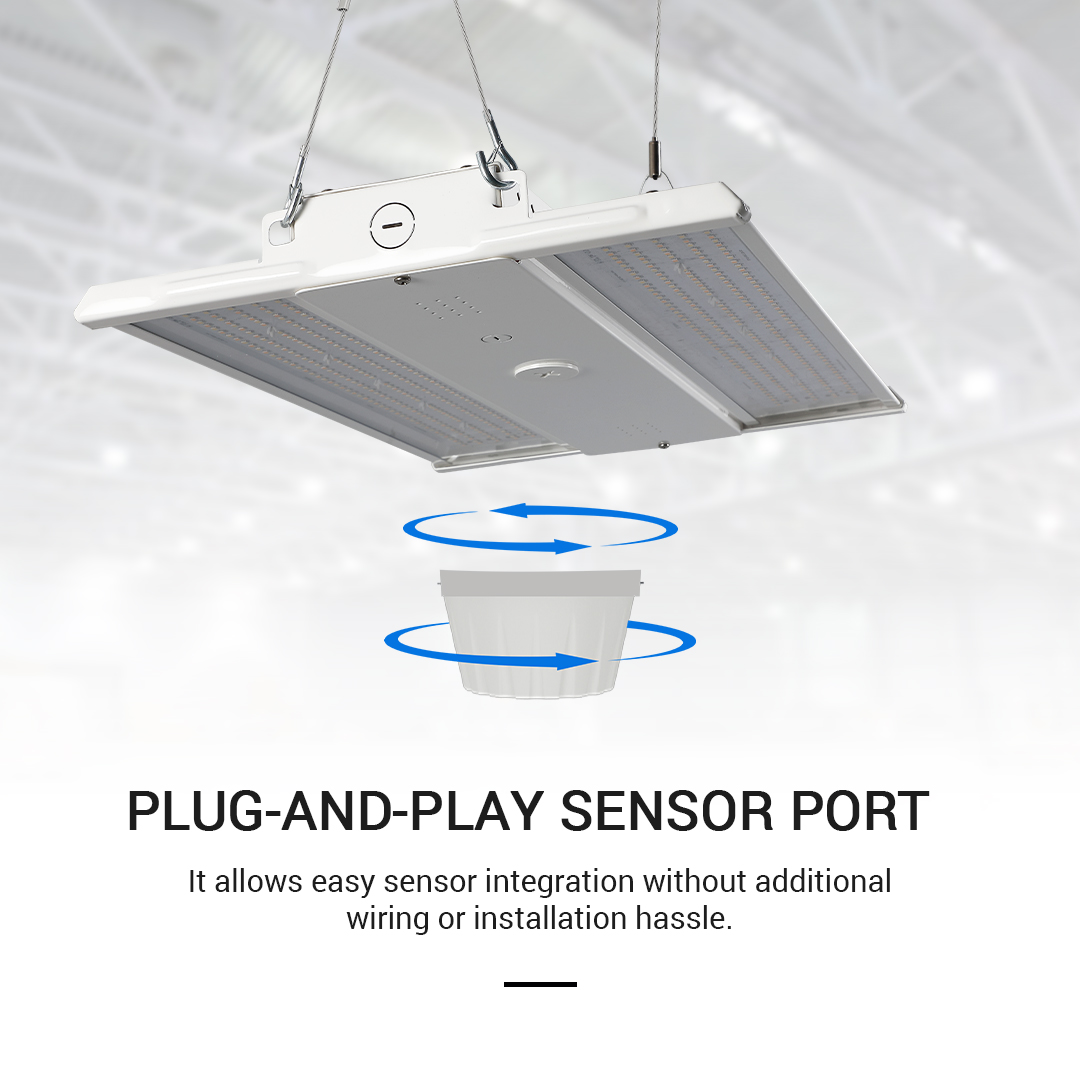

Available in Wattage- 400W with Plug-and-Play Sensor.
The Havells Linear High Bay Light is a modern, energy-efficient lighting solution for large indoor spaces. Its durable, shatter-resistant build ensures consistent, uniform lighting without hot spots or discoloration. Ideal for warehouses, garages, retail spaces, and sports facilities. A plug-and-play sensor port allows easy sensor integration without extra wiring or installation work.
Application :
Warehouses, Distribution Centers, Manufacturing Facilities.
Frequently Asked Questions (FAQ's)
How do I prepare a linear highbay for installation?
Before installing, ensure the power supply is turned off and the mounting location can safely support the fixture’s weight. Check that mounting hardware and tools are ready.
How should the dimming wires be routed?
Feed the dimming wires through the designated Ø22.2 mm hole in the housing plate to keep wiring organized and protected during installation.
How do I connect the electrical wires?
Connect the fixture’s input wires to the supply lines following standard color coding and local electrical codes: Hot (black) to Hot (black), Neutral (white) to neutral (white), and ground (green) to ground (green).
What should I do after installation?
Once wiring and mounting are complete and verified, restore power and test the fixture to confirm proper illumination and control response (e.g., dimming, sensor programming).
How do you choose the right high bay lights?
Choose the right high bay lights by considering ceiling height, required lumen output, beam angle, and energy efficiency. Also check certifications, dimming or control compatibility, mounting options, operating environment, lifespan, and warranty to ensure safe, cost-effective, and long-term performance.
Are Linear highbay can be sensor controlled?
yes, all Havells linear highbay are ready for installing motion sensor in to pre connected sensor port.
Can Havells Linear highbays can be Emergency ready?
yes, all Havells Linear highbay lights are come ready pre drilled hole position to adapt to Havells EM pack with special knock out for the EM button on the bottom, with proper wire routing for quick EM installation.
What accessories availbel with linear highbay for quick and easy inatll?
All linear higbay comes with 6ft chain for pendat installation of the fixtures. Motion sensor to adapt to port and EM pack to adapt to drill pattern is available. Also availbale are 6ft and 12 ft ready whip for extension and quick connect on both ends for quick install.
