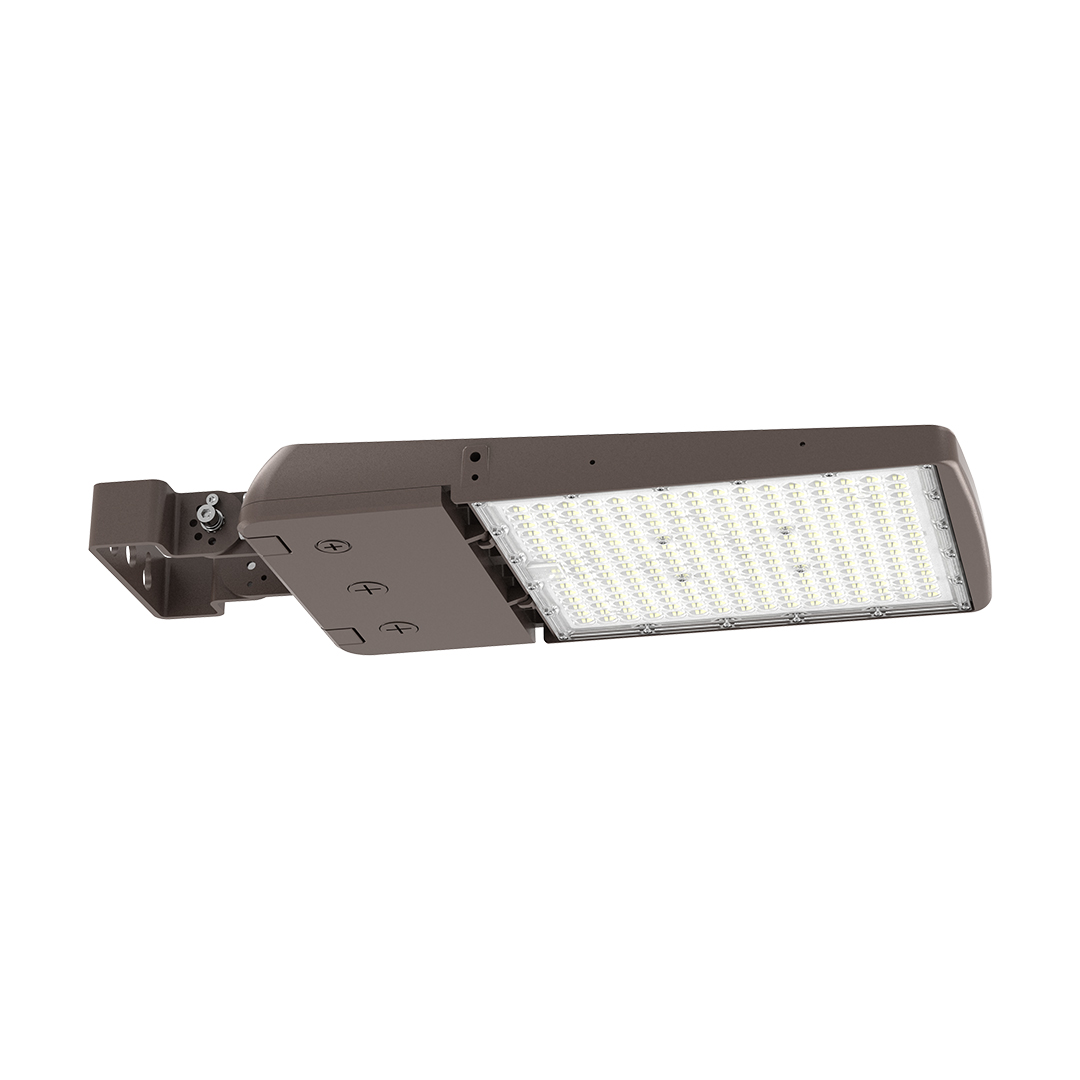

Flexi Lite Area Light 150W HV
- Design Flexibility
- Selectable Wattage & CCT
- Selectable Beam
- High efficacy in 150W light providing upto 24,000 lumens.
- Operating Temperature: -40°C to +50°C
Performance Data
| 3000K (>80 CRI) | 4000K (>80 CRI) | 5000K (>80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Selectable Wattages | Distribution | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-AL-MW-MCCT-ML3-150W-BR-HV | 150W | TYPE Ⅲ | 21,750lm | 145 lm/W | 23,250lm | 155 lm/W | 22,500lm | 150 lm/W |
| 100W | 14,500lm | 145 lm/W | 15,500lm | 155 lm/W | 15,000lm | 150 lm/W | ||
| 70W | 10,150lm | 145 lm/W | 10,850lm | 155 lm/W | 10,500lm | 150 lm/W | ||
| 150W | TYPE IV | 22,500lm | 150 lm/W | 24,000lm | 160 lm/W | 23,250lm | 155 lm/W | |
| 100W | 15,000lm | 150 lm/W | 16,000lm | 160 lm/W | 15,500lm | 155 lm/W | ||
| 70W | 10,500lm | 150 lm/W | 11,200lm | 160 lm/W | 10,850lm | 155 lm/W | ||
| 150W | TYPE V | 21,750lm | 145 lm/W | 23,250lm | 155 lm/W | 22,500lm | 150 lm/W | |
| 100W | 14,500lm | 145 lm/W | 15,500lm | 155 lm/W | 15,000lm | 150 lm/W | ||
| 70W | 10,150lm | 145 lm/W | 10,850lm | 155 lm/W | 10,500lm | 150 lm/W | ||
For Parking Areas, Shopping Centers, and General Park Lighting. Available in Selectable Wattages & CCT- 150W.
The Flexi Lite Area Light offers complete flexibility with adjustable lumen output, color temperature, and multiple light distribution options (Type III, Type IV, and Type V). This versatility simplifies inventory management and adapts to a wide range of project needs. Each fixture includes a Multi-Mount Bracket for easy installation on round poles, square poles, or with a slipfitter. Built-in surge protection up to 10kV ensures reliable performance and durability.
Applications:
Parking Area, Shopping Centers, and General Park Lighting
Frequently Asked Questions (FAQ's)
Can LED Area Lights be used for parking lots and roadway lighting?
Yes, LED Area Lights are specifically designed for parking lots, roadways, campuses, and large outdoor areas. Their wide beam angles, high lumen output, and uniform light distribution improve safety, visibility, and compliance with local lighting requirements.
Are LED Area Lights safe and compliant for outdoor use?
What wattage should I choose for my project?
Most LED Area Lights range from 100W to 300W. Lower wattages work well for smaller lots, while higher wattages are better for large open areas. The right choice depends on pole height, spacing, and how much light coverage you need.Havells can support photometric support for all your area lighting need.
What mounting options does the Flexi Lite Area Light support?
It includes a Multi-Mount bracket that works with round poles, square poles, or slipfitter mounts for flexible installation. Truinion mounts are available for purchase and not included in the box.
Is the Flexi Lite Area Light protected against electrical surges?
Yes. It has built-in surge protection up to 10kV, helping guard against electrical fluctuations and improve long-term reliability.
