2×4 Troffer Center Basket with Emergency Battery Backup
Wattage: 50W/40W/30W
Max Lumens: 6,500lm
CCT: 5000K/4000K/3500K
Features & Benefits
- Fully selectable CCT and wattage for customized lighting output
- Delivers up to 6,500 lm in the 2×4 variant for high brightness
- Equipped with Integral NEC-compliant earthquake clips
- Suitable for wet and dry locations
Performance Data
| 3500K (>80CRI) | 4000K (>80CRI) | 5000K (>80CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-TR-2X4-MW-MCCT-TROFFER-EM | 30W | 0.458A | 3,930lm | 131 lm/W | 4,080lm | 136 lm/W | 3,990lm | 130 lm/W |
| 40W | 5,120lm | 128 lm/W | 5,320lm | 133 lm/W | 5,200lm | 130 lm/W | ||
| 50W | 6,250lm | 125 lm/W | 6,500lm | 130 lm/W | 6,350lm | 127 lm/W | ||
Product Summary
Available in Selectable Wattages & CCT- 30W/40W/50W
The 2×4 Troffer Center Basket with Emergency Battery Backup is a versatile and reliable lighting solution designed for commercial environments that demand consistent performance and safety. This 2×4 emergency battery backup variant features fully selectable CCT and wattage, allowing for precise optimization to suit different applications. Engineered for high efficiency, it delivers uniform brightness while supporting optional motion sensor integration and emergency driver functionality, ensuring dependable illumination during power interruptions.
Applications:
Commercial Spaces, Airport lounges, Corporate offices, Banks & ATM outlets, Modern work spaces, and Hospital premises.
Product Specification
Efficacy
130 lm/W
Dimming
0-10V standard
CCT Options
3500K/4000K/5000K
CRI
≥80
Beam Angle
120°
Input Voltage
120-277 Vac
Power Factor (PF)
≥0.9
THD
<20%
Operating Temp.
-20℃ to +45℃
Warranty
5 Years
Finish
White
Mounting
Recessed Ceiling
Housing Material
Metal+ Aluminum Powder Coated
Lens Type
PC Lens, 120 degree HB Grade
FAQ
Frequently Asked Questions (FAQ's)

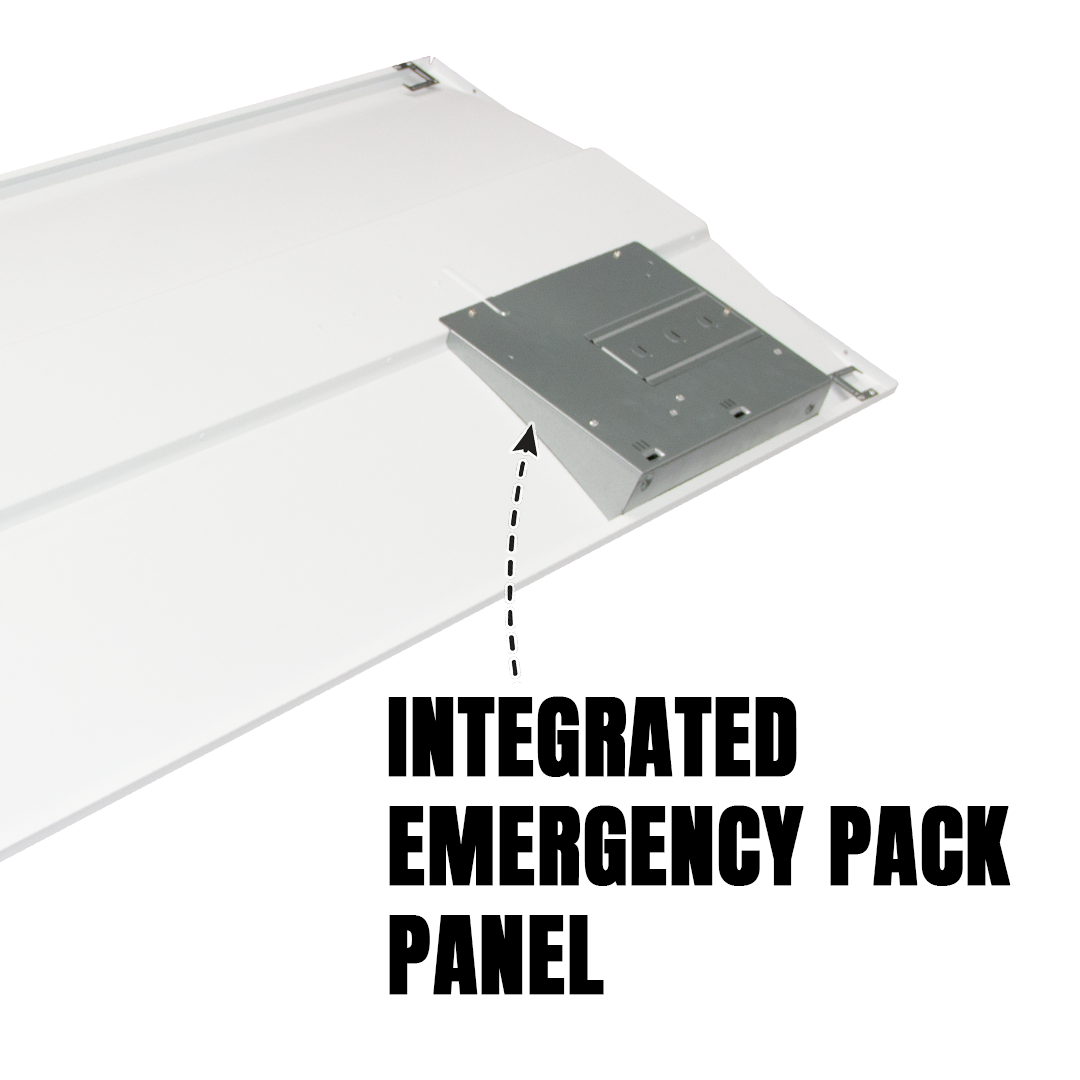

How does the emergency battery backup function?
The integrated emergency battery activates automatically when main power fails, providing temporary illumination for safe movement and visibility. This feature supports life-safety lighting requirements and helps facilities meet emergency lighting codes in commercial and institutional buildings.
Can the light output be adjusted?
Yes, selectable wattage enables installers to adjust lumen output during installation. This supports energy optimization, lighting design flexibility, and future adaptability without replacing fixtures, making it practical for both new projects and retrofit applications.
What safety features are included?
The troffer provides emergency illumination during outages and is built to meet electrical safety listings. Uniform, low-glare light improves visibility and visual comfort, supporting safer work environments and reducing risks associated with poor lighting conditions.
