Hexa Half Cut Wall Pack 120W PS

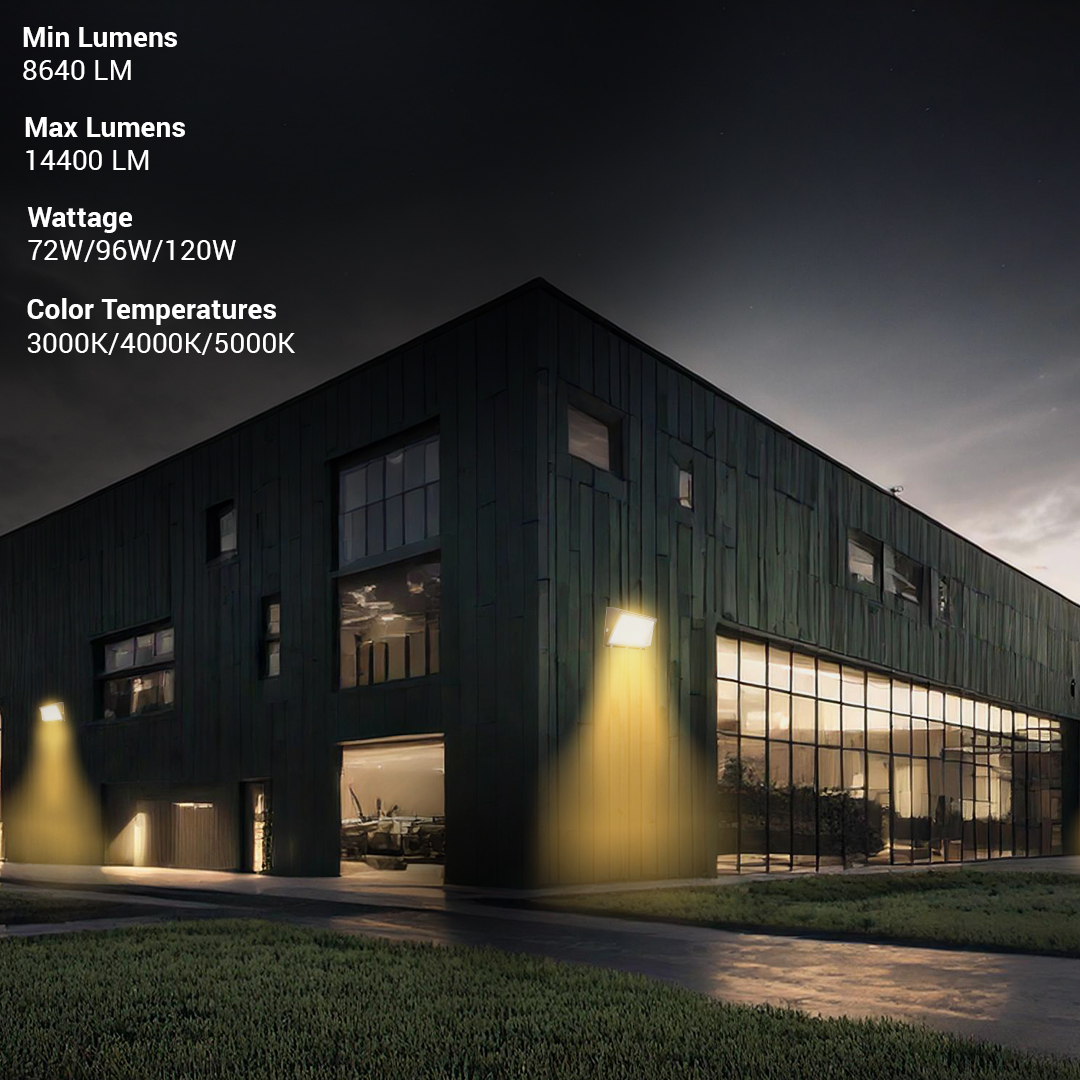

- High efficacy with 120W light providing upto 14,400 lumens
- Selectable wattage & CCT
- Operating temp: -20°C to +40°C
- 50,000-hour lifespan
- 5-year warranty
Performance Data
| 3000K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Selectable Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-WP-MW-MCCT-120W-PS | 72W/96W/120W | 0.667A/0.889A/1.111A | 8640lm | ≥120 lm/W | 11520lm | ≥120 lm/W | 14400lm | ≥120 lm/W |

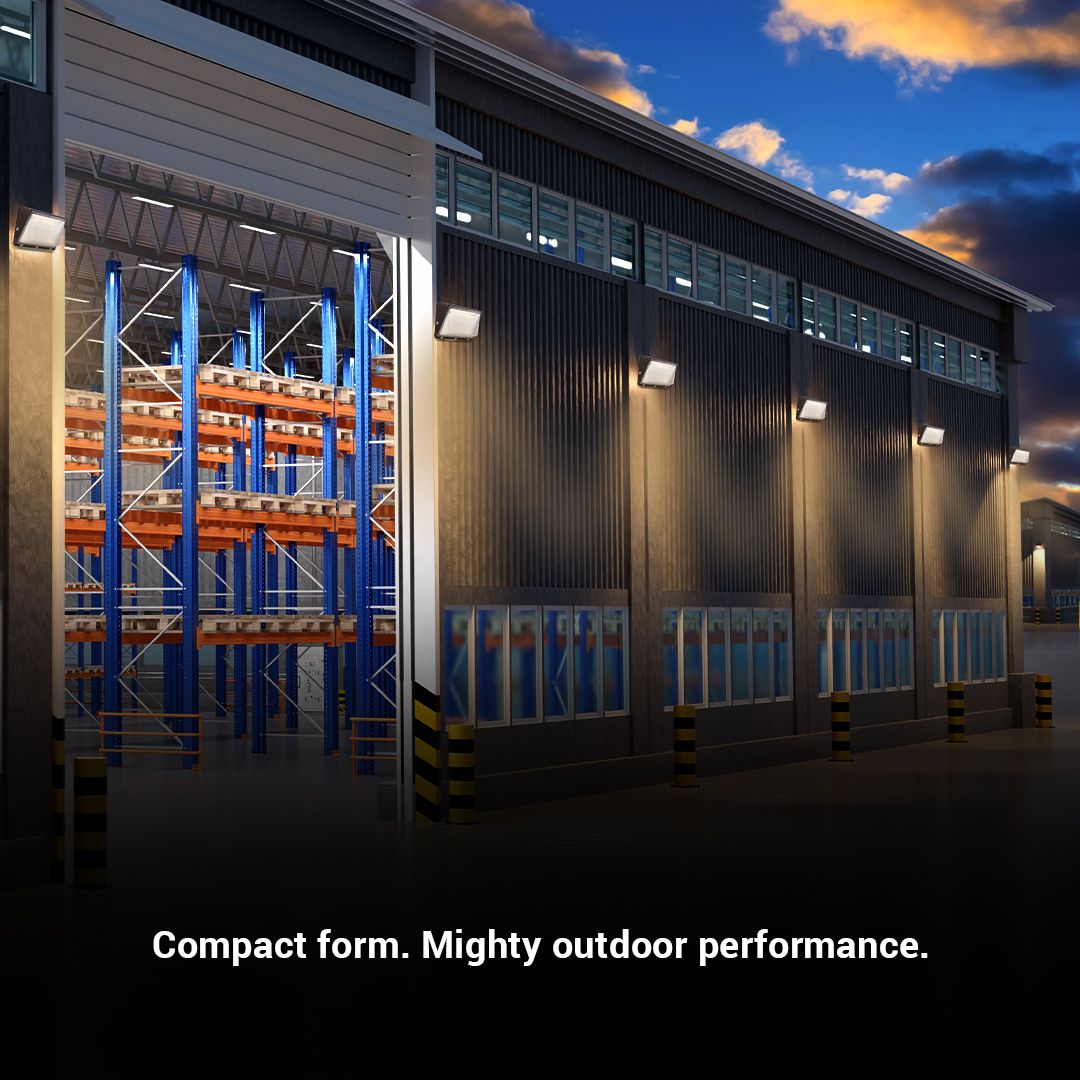

For Exterior Walls, Parking Areas, and Industrial Applications. Available in Selectable Wattage & CCT- 72W/96W/120W.

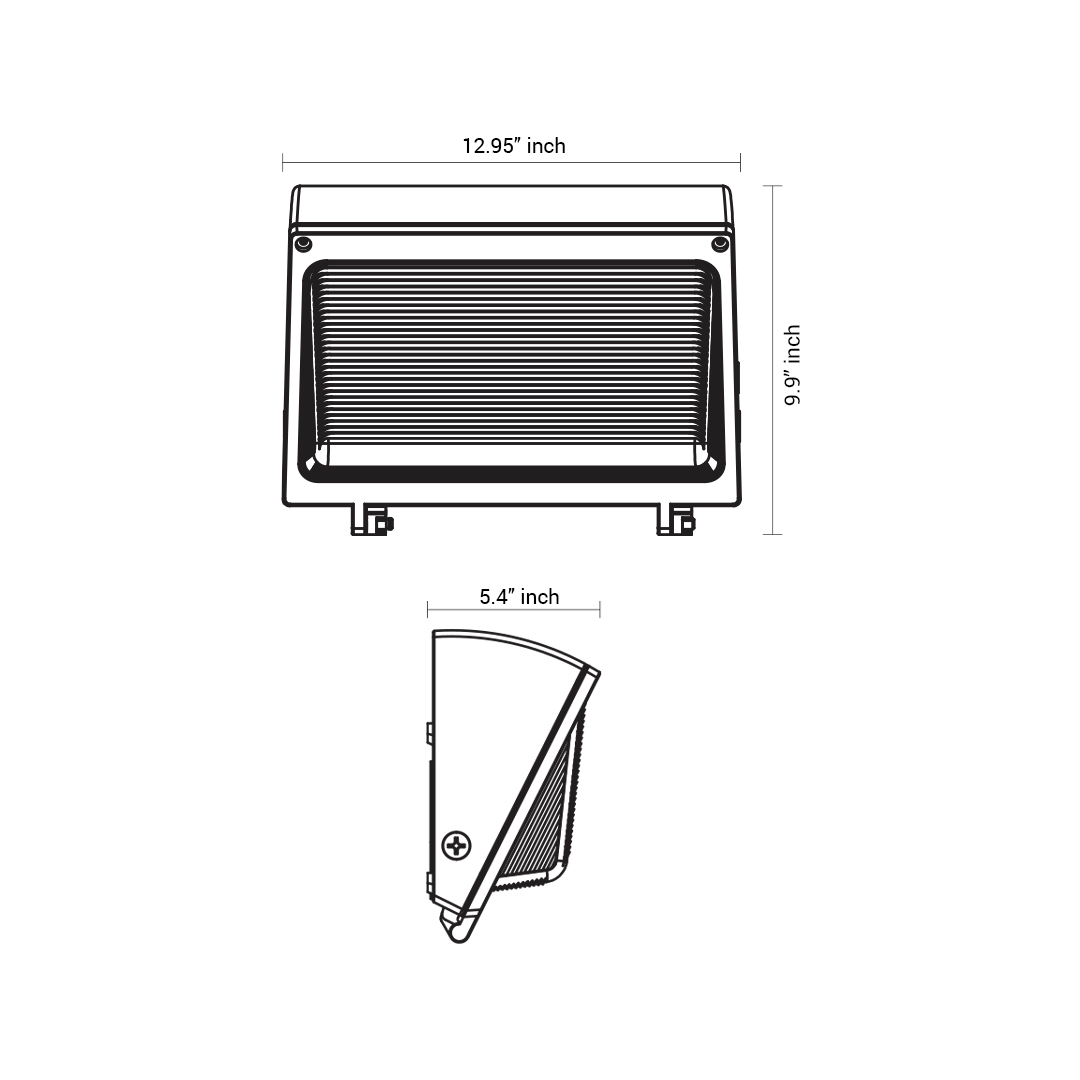

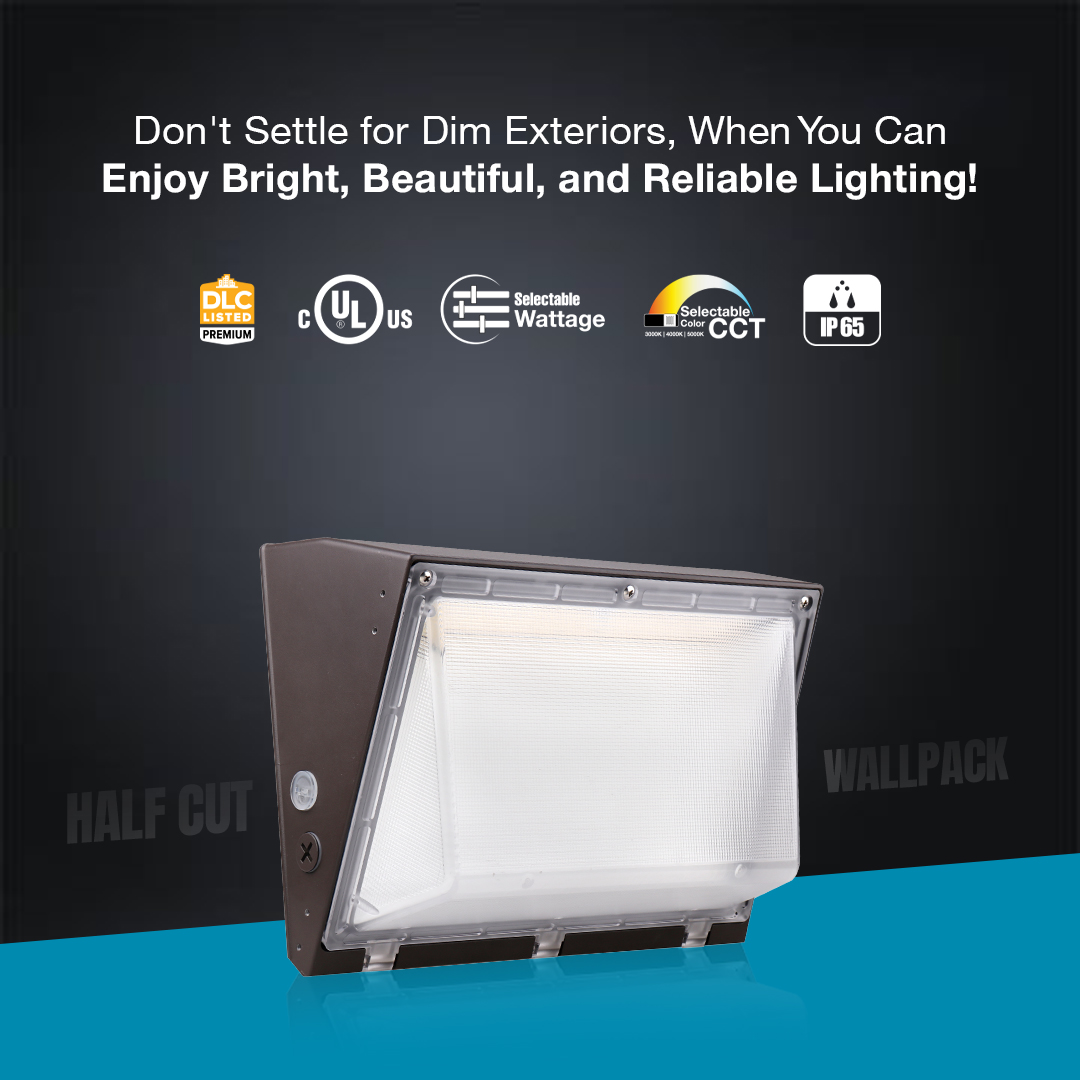

The Half Cut Wall Packs are designed with a sleek, modern aesthetic and advanced lighting technology to provide focused, efficient illumination while minimizing light spillage. Ideal for enhancing the visibility and appeal of any outdoor environment, these fixtures combine form and function seamlessly. Best of all, they maintain the same footprint as traditional HID wall packs, allowing for straightforward replacements without the need for retrofitting or additional modifications.
Applications:
Exterior Building Lighting, Yard and Dock Lighting, Parking Lot Lighting, Industrial Lighting, Security Lighting, and Airport Lighting.
Frequently Asked Questions (FAQ's)
Is the Havells Hexa Half Cut Wall Pack suitable for security lighting?
Yes, it provides focused, downward light ideal for enhancing outdoor security around buildings.
What wattage and light output does this wall pack support?
The Hexa Half Cut Wall Pack supports selectable wattages (e.g., 72W, 96W, 120W) and delivers high lumen output (e.g., ~16,800 lm at 120W) for bright, efficient outdoor lighting.
Can I choose different color temperatures?
Yes, Hexa Half Cut models let you switch between multiple correlated color temperatures (CCT) such as 3000K, 4000K, and 5000K to match site lighting needs and ambiance.
Is the Hexa Half Cut Wall Pack weather-resistant?
Does this wall pack support commercial lighting standards?
Yes, it’s designed with industry-standard electrical and photometric compliance in mind, suitable for commercial and industrial outdoor environments.
