Consta Pro LED Strip Light 4 Feet
Wattage: 23W/35W/46W

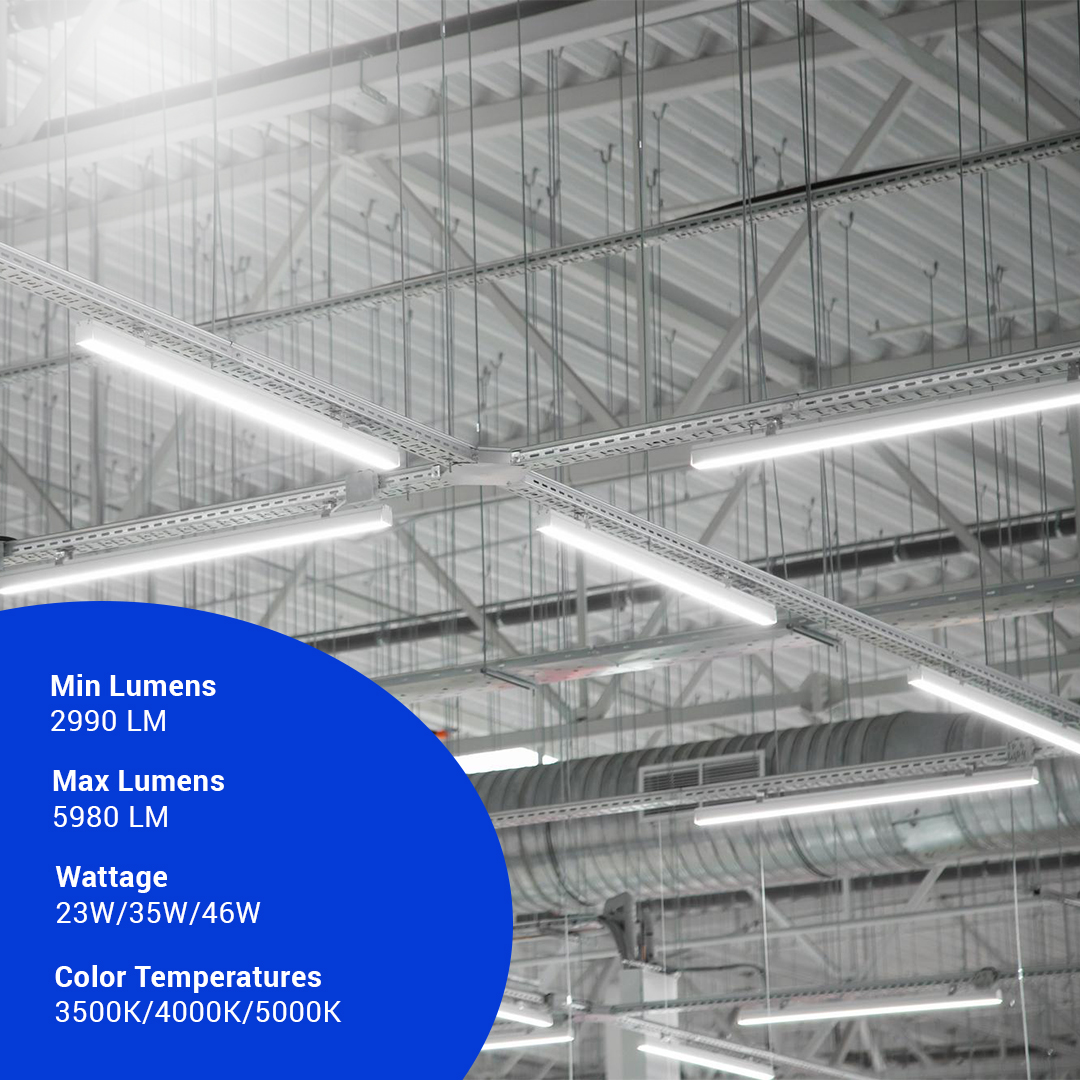

Max Lumens: 5980LM
CCT: 3500K|4000K|5000K
Features & Benefits
- Ecologically Friendly
- Durable Quality
- High efficacy with 8’ light providing upto 10,400 lumens
- Operating Temperature: -20°C to +50°C
- Rated for 50,000 hours
Performance Data
| 3500K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-STW-MW-MCCT-46W-4 Feet | 23W/35W/46W | 0.213A/0.324A/0.426A | 2990lm | 130 lm/W | 4550lm | 130 lm/W | 5980lm | 130 lm/W |
Product Summary
For Commercial Space, Hospital Premises, and Electric Rooms. Available in Selectable Wattage & CCT- 23W/35W/46W.

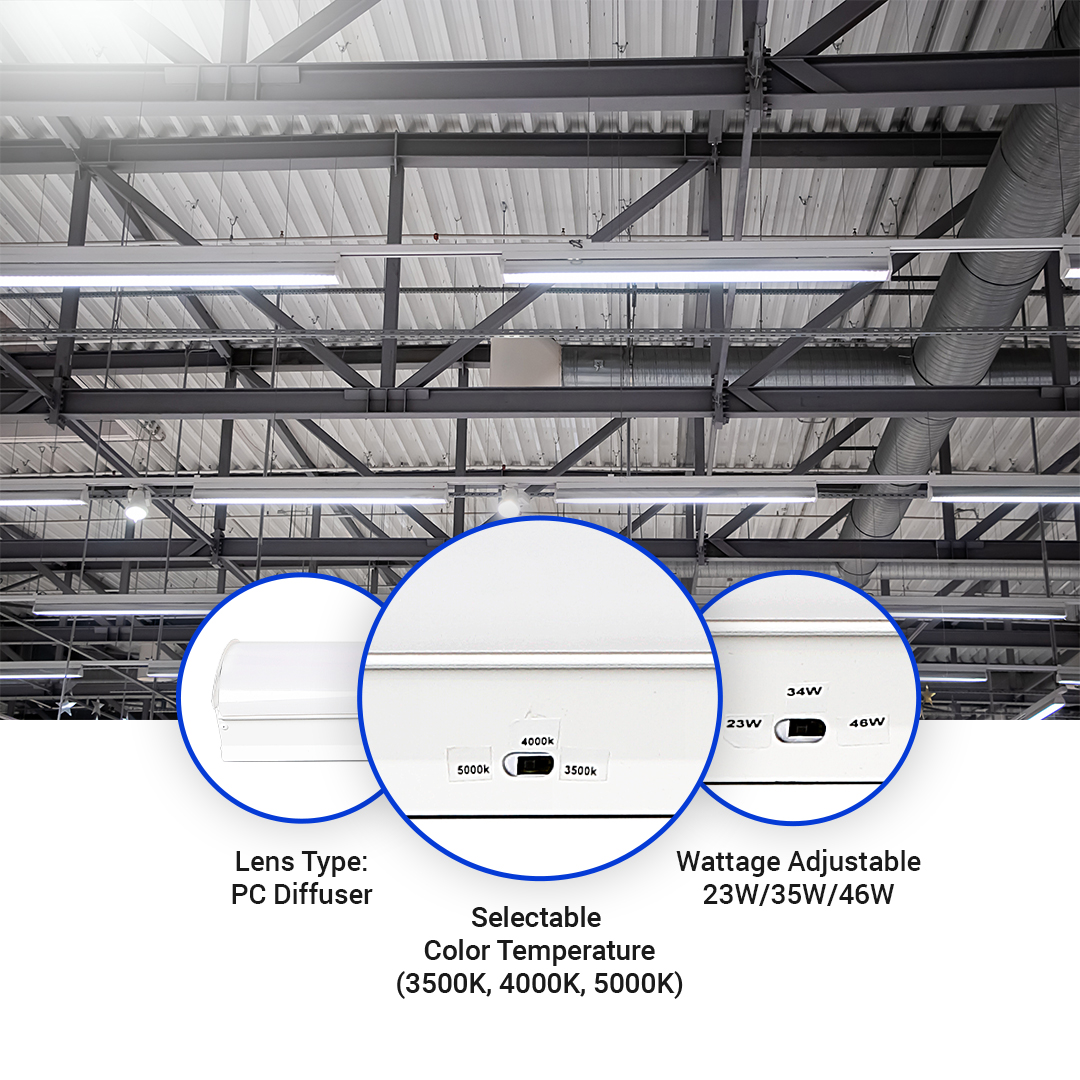

The LED Strip Consta Pro Series delivers efficient, versatile lighting with 2’, 4’, and 8’ linear LED strip options for a wide range of indoor applications. Its durable white-powder coated housing includes a slide switch for easy adjustment of CCT and wattage. Designed to match the standard width of traditional fluorescents, it allows smooth installation with little to no repainting. Suitable for single or continuous row mounting, the Consta Pro provides reliable, uniform illumination to enhance any environment.
Application:
Commercial Space, Hospital Premises, Educational institutions, Storages, Electric Rooms, Stairs and Corridors.
Product Specification
Efficacy
130 LM/W
CCT Options
3500K / 4000K / 5000K
CRI
≥80
Beam Angle
120°
Input Voltage
120-277Vac
Power Factor (PF)
0.9
THD
≤10%
Dimming
0-10V standard
Operating Temp.
-20℃ to +50℃
Warranty
5 Years
Finish
White
Mounting
Suspended and Ceiling
Housing Material
Metal Powder Coated
Lens Type
PC Diffuser
FAQ
Frequently Asked Questions (FAQ's)
What safety features does the Consta Pro LED Strip Light include?
Designed for indoor dry and damp locations, it operates at low temperatures with effective heat management. The LEDs emit no harmful UV or IR radiation and contain no mercury, enhancing both safety and environmental compliance.
What is the expected lifespan of the Consta Pro LED Strip Light?
The LEDs offer a long operational life—typically around 50,000 hours—reducing maintenance and replacement costs while supporting long-term facility use.
Is Consta Pro LED Strip Light good for continuous use?
Yes, it is designed for long operating hours.
What power options does the 4 ft model offer?
The 4 ft Consta Pro LED Strip Light features selectable wattages of 23 W, 35 W, and 46 W. Wattage options may vary depending on the fixture length (2 ft, 4 ft, or 8 ft) and configuration.
What voltage does it support?
The 4 ft strip light operates across 120–277 V AC, making it suitable for most electrical systems.
