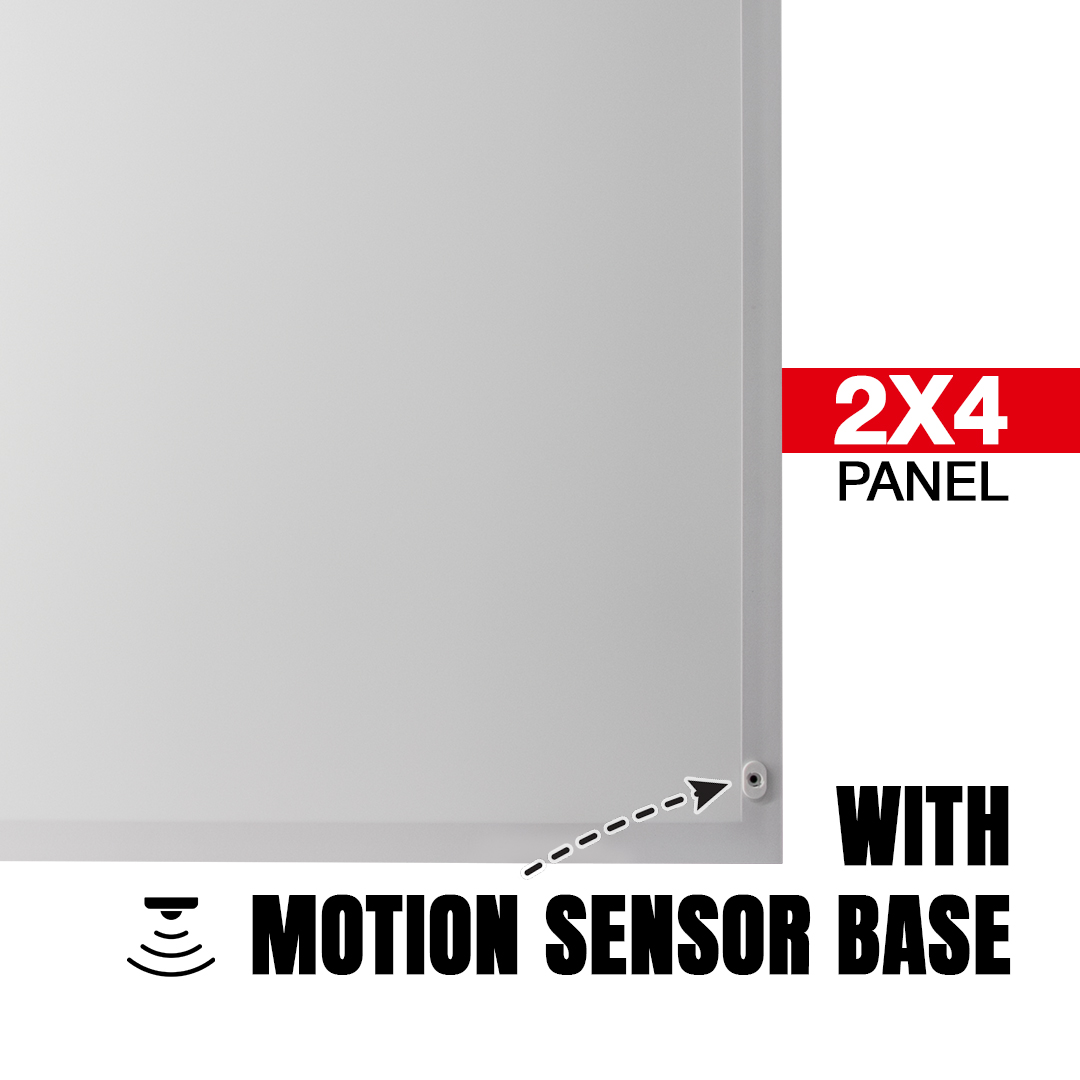

2×4 LED Backlit Panel Light with Motion Sensor Base (Coming soon)
Wattage: 50W/40W/30W
Max Lumens: 6,250lm
CCT: 5000K/4000K/3500K
Features & Benefits
- Selectable brightness and color temperature for flexible lighting control
- Available in selectable wattages 30W/40W/50W providing upto 6,250lm.
- Reliable and consistent light output for everyday indoor lighting applications
Performance Data
| 3500K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-2x4-MW-MCCT-BACK-LIT PANEL-MS | 30W | 0.278A | 3,780lm | 126 lm/W | 3,930lm | 131 lm/W | 3,840lm | 128 lm/W |
| 40W | 0.370A | 4,920lm | 123 lm/W | 5,120lm | 128 lm/W | 5,000lm | 125 lm/W | |
| 50W | 0.463A | 6,000lm | 120 lm/W | 6,250lm | 125 lm/W | 6,100lm | 122 lm/W | |
Product Summary
Commercial Spaces, Airport lounges and Corporate offices. Available in 30W/40W/50W
The Hercules Gen 2 2×4 LED Backlit Panel Light with Motion Sensor Base offers a versatile and contemporary lighting solution suitable for various indoor environments. It features adjustable brightness levels and color temperature options, allowing users to customize the lighting to meet specific needs. Additionally, this model includes a motion sensor base that conserves energy by eliminating the need for manual switching, enhancing user convenience.
Applications:
Commercial Spaces, Airport lounges, Corporate offices, Banks & ATM outlets, Data centres, Modern Work spaces, Schools, Churches, and Hospital premises.
Product Specification
Efficacy
120 lm/W
CCT (Selectable)
3500K / 4000K / 5000K
CRI
≥80
Beam Angle
120°
Input Voltage
120-277 Vac
Power Factor (PF)
0.9
THD
20%
Dimming
0-10V standard
Operating Temp.
-20℃ to +45℃
Warranty
5 Years
Finish
White
Mounting
Recessed Ceiling Mounting
Housing Material
Metal+ Aluminum Powder Coated
Lens Type
PC Lens, 120 degree HB Grade
