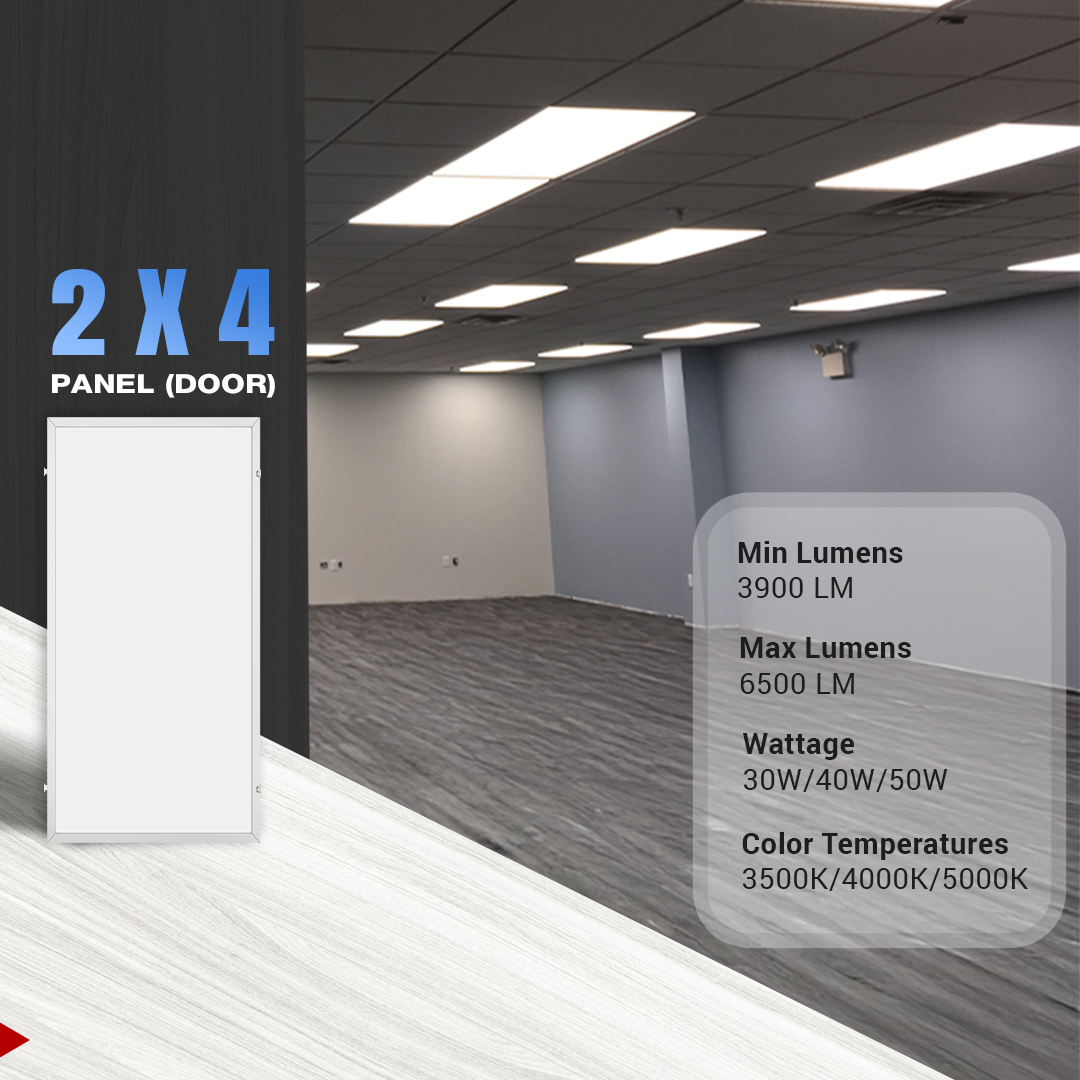

Rapid Retro Panel Door 2X4
Wattage: 50W/40W/30W
Max Lumens: 6,092.0lm
CCT: 5000K/4000K/3500K
Features & Benefits
- 0–10V dimming for smooth control
- ETL Certified, DLC Premium, UL listed
- Fully selectable CCT and wattage for customized lighting output
- Delivers up to 6,092.0lm in the 2×4 variant for high brightness
- Suitable for dry and damp locations
Performance Data
| 3500K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Selectable Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-2X4-MW-MCCT-50W-Retro Troffer | 30W/40W/50W | 0.46A | 5,746.0lm | 122.20 lm/W | 6,092.0lm | 134.30 lm/W | 5,920.0lm | 125.90 lm/W |
Product Summary
Available in Selectable Wattage & CCT- 30W/40W/50W
Our Rapid Retro Panel Door is an eco-friendly, patented luminaire designed with a sleek, modern recess-mounting system. It features selectable CCT, wattage, and dimming options, allowing users to customize their lighting experience fully. Ideal for grid ceilings, this next-generation light is available in three sizes, providing the flexibility and convenience to meet diverse customer needs.
Applications
Commercial Spaces, Airport Lounges, Corporate Offices, Banks & ATM Outlets, Data Centers, Modern Work Spaces and Hospital Premises.
Product Specification
Efficacy
137.33 lm/W
Beam Angle
120°
THD
<20
Warranty
5 Years
Housing Material
CRCA
CCT (Selectable)
3500/4000/5000K
Input Voltage
120–277 Vac
Dimming
0-10V standard
Finish
White
Lens Type
Diffuser
CRI
80
Power Factor (PF)
>0.9
Operating Temp.
-20°C to +40°C
Mounting
Recessed & Surface
