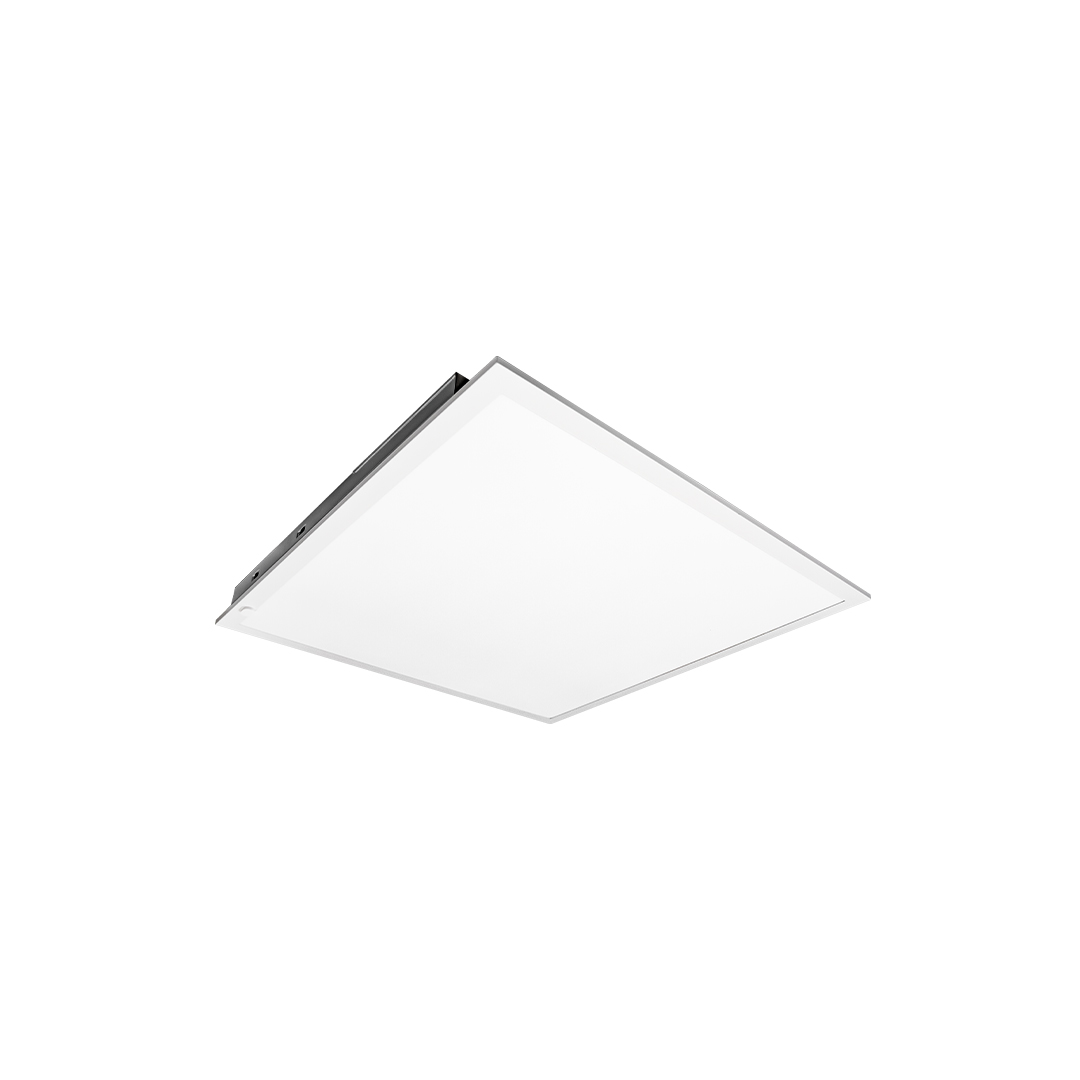

Hercules Gen 2 Panel Light 2X2
Wattage: 20W/30W/40W
Max Lumens: 4,880lm
CCT: 3500K/4000K/5000K
Features & Benefits
- High efficacy: 2’ x 2’ delivers upto 5,000lm lumens
- Selectable wattage & CCT
- Dimming feature for easy customization
- ETL listed for dry & damp locations
- Operating temp: -20°C to +45°C
Performance Data
| 3500K (≥80 CRI) | 4000K (≥80 CRI) | 5000K (≥80 CRI) | ||||||
|---|---|---|---|---|---|---|---|---|
| Model Number | Wattages | Input Current | Lumens | Efficacy | Lumens | Efficacy | Lumens | Efficacy |
| HL-2x2-MW-MCCT-BACK-LIT PANEL | 20W | 0.148A | 2,520lm | 126 lm/W | 2,620lm | 131 lm/W | 2,560lm | 128 lm/W |
| 30W | 0.241A | 3,690lm | 123 lm/W | 3,840lm | 128 lm/W | 3,750lm | 125 lm/W | |
| 40W | 0.333A | 4,800lm | 120 lm/W | 5,000lm | 125 lm/W | 4,880lm | 122 lm/W | |
Product Summary
Available in Selectable CCT & Wattages- 20W/30W/40W.
The Havells Hercules Gen 2 Recessed Panel Light is a stylish and modern lighting solution designed to enhance the ambience of any indoor space. It offers customizable brightness and color tone in multiple sizes to suit different environments. Its sleek design and easy installation add a clean, contemporary look to ceilings while providing bright, uniform illumination.
Applications:
Commercial Spaces, Airport lounges, Corporate offices, Banks & ATM outlets, Data centers, Modern Work spaces, Schools, Churches and Hospital premises.
Product Specification
Efficacy
120 lm/W
CCT (Selectable)
3500K / 4000K / 5000K
CRI
≥80
Beam Angle
120°
Input Voltage
120-277 Vac
Power Factor (PF)
0.9
THD
20%
Dimming
0-10V standard
Operating Temp.
-20℃ to +45℃
Warranty
5 Years
Finish
White
Mounting
Recessed Ceiling Mounting
Housing Material
Metal+ Aluminum Powder Coated
Lens Type
PC Lens, 120 degree HB Grade
